AX900214

第三方数据AUTO EXTRA : AX900214

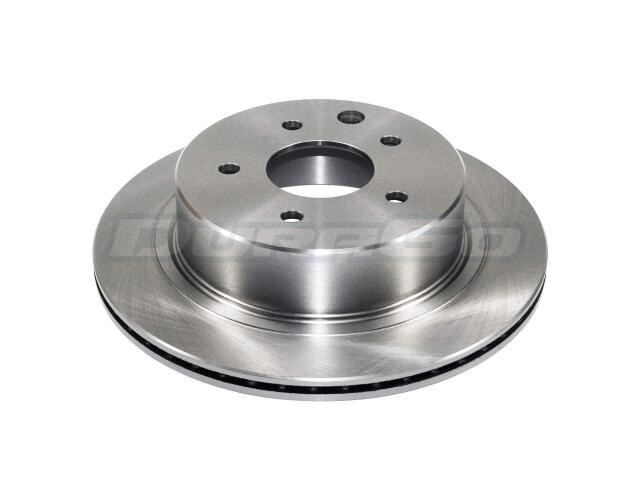

Rotor
AUTO EXTRA : AX900214

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.55
Discard Thickness (MM): 14
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.63
Nominal Thickness (MM): 16
Outside Diameter (IN): 11.5
Outside Diameter (MM): 292
Overall Height (IN): 2.52
Overall Height (MM): 64.1
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

INFINITI (1)

OE号码

品牌	号码
OE	AX900214:*
