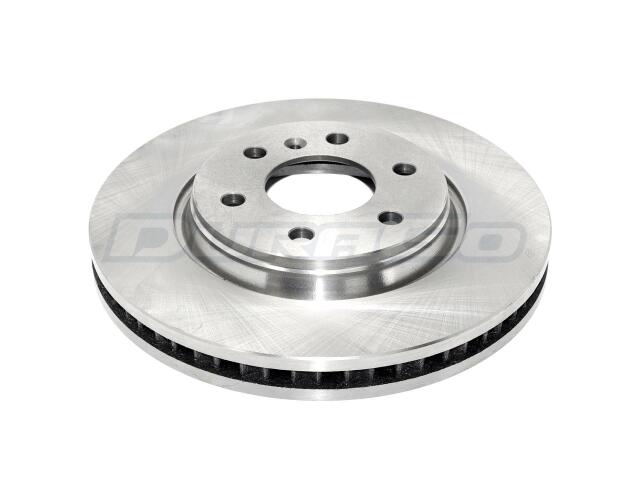

Rotor
AUTO EXTRA : AX55118

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.21
Discard Thickness (MM): 30.7
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.27
Nominal Thickness (MM): 32.3
Outside Diameter (IN): 11.69
Outside Diameter (MM): 297
Overall Height (IN): 2.07
Overall Height (MM): 52.7
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

BUICK (1)

CHEVROLET (1)

PONTIAC (1)

SATURN (1)

OE号码

品牌	号码
OE	AX55118:*
