AX55112P

第三方数据AUTO EXTRA : AX55112P

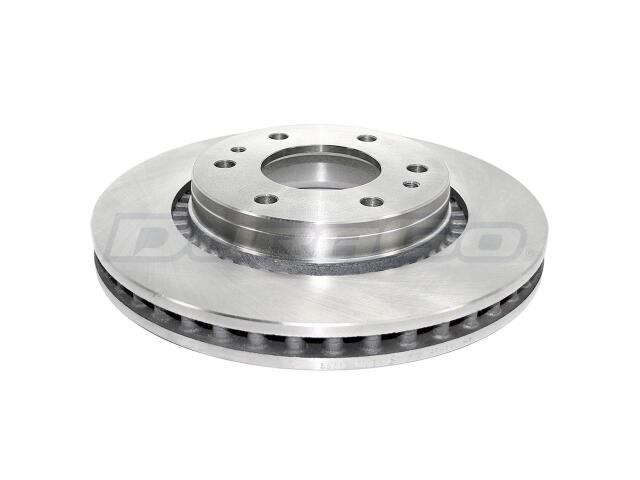

Rotor
AUTO EXTRA : AX55112P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.12
Center Hole Diameter (MM): 79.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.08
Discard Thickness (MM): 27.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.2
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.14
Nominal Thickness (MM): 29
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302
Overall Height (IN): 2.15
Overall Height (MM): 54.7
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

ISUZU (1)

BUICK (1)

CHEVROLET (2)

GMC (1)

OE号码

品牌	号码
OE	AX55112P:*
