AUTO EXTRA
AX55095

第三方数据AUTO EXTRA : AX55095

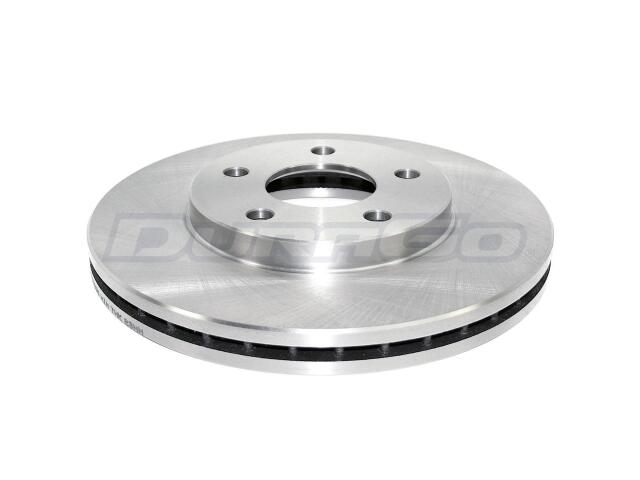

Rotor
AUTO EXTRA : AX55095

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.59
Center Hole Diameter (MM): 65.8
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.91
Discard Thickness (MM): 23
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.33
Mounting Bolt Hole Circle Diameter (MM): 110
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26
Outside Diameter (IN): 10.87
Outside Diameter (MM): 276
Overall Height (IN): 1.7
Overall Height (MM): 43.1
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHEVROLET (1)

PONTIAC (1)
