AUTO EXTRA
AX55094P

第三方数据AUTO EXTRA : AX55094P

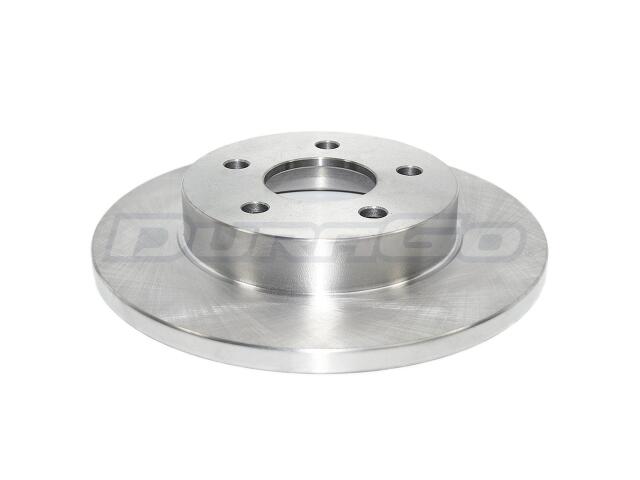

Rotor
AUTO EXTRA : AX55094P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.59
Center Hole Diameter (MM): 65.8
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.47
Discard Thickness (MM): 12
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.33
Mounting Bolt Hole Circle Diameter (MM): 110
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.4
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.55
Nominal Thickness (MM): 14
Outside Diameter (IN): 10.64
Outside Diameter (MM): 270.2
Overall Height (IN): 1.78
Overall Height (MM): 45.1
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

CHEVROLET (3)

COBALT (3)

HHR (3)

MALIBU (6)

PONTIAC (2)

SATURN (2)
