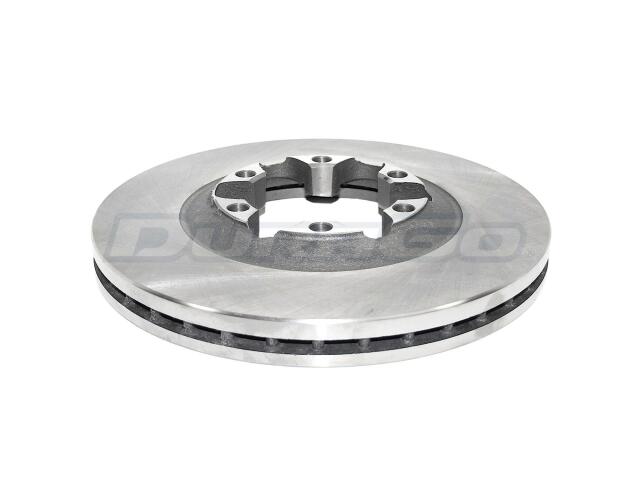

Rotor
AUTO EXTRA : AX55090P

Abs Tone Ring Included: No
Bolt Size (MM): M12 x 1.25
Center Hole Diameter (IN): 3.63
Center Hole Diameter (MM): 92.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.01
Discard Thickness (MM): 25.7
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.07
Nominal Thickness (MM): 27.3
Outside Diameter (IN): 11.02
Outside Diameter (MM): 279.8
Overall Height (IN): 1.58
Overall Height (MM): 40.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

ISUZU (4)

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	AX55090P:*
