AUTO EXTRA
AX55051P

第三方数据AUTO EXTRA : AX55051P

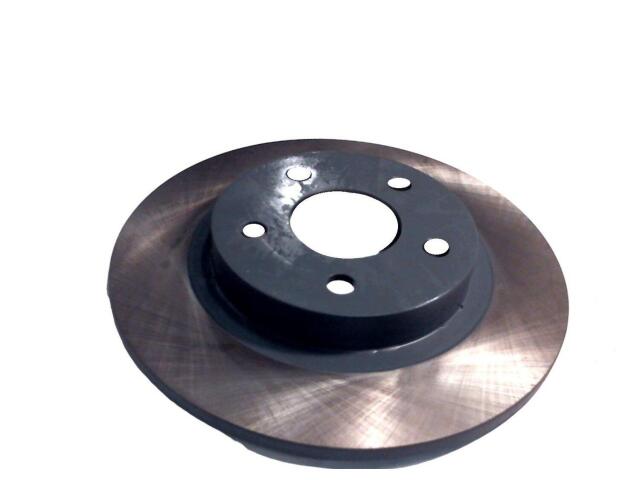

Rotor
AUTO EXTRA : AX55051P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.79
Center Hole Diameter (MM): 70.8
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.35
Discard Thickness (MM): 9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.65
Mounting Bolt Hole Circle Diameter (MM): 118
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.4
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.44
Nominal Thickness (MM): 11.2
Outside Diameter (IN): 11.72
Outside Diameter (MM): 297.7
Overall Height (IN): 1.52
Overall Height (MM): 38.7
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

BUICK (1)

CADILLAC (1)

PONTIAC (1)

OE号码

品牌	号码
OE	AX55051P:*
