第三方数据AUTO EXTRA : AX55039P

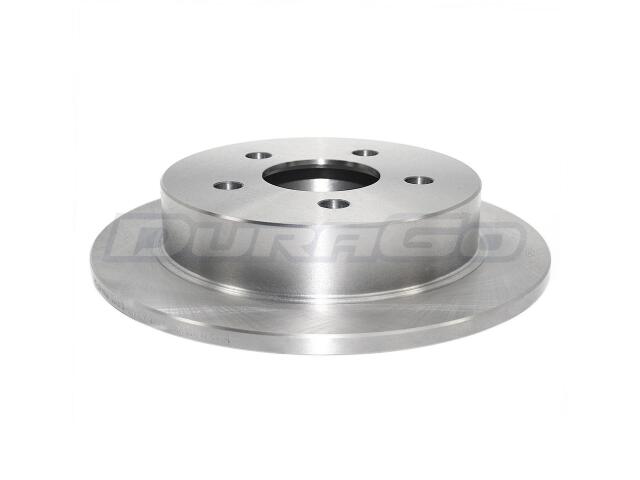

Rotor
AUTO EXTRA : AX55039P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.35
Discard Thickness (MM): 9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.65
Mounting Bolt Hole Circle Diameter (MM): 118
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16.1
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11
Outside Diameter (IN): 10.95
Outside Diameter (MM): 278.2
Overall Height (IN): 2.01
Overall Height (MM): 51.1
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

BUICK (1)

CHEVROLET (2)

PONTIAC (1)

OE号码

品牌	号码
OE	AX55039P:*
