AUTO EXTRA
AX55034P

第三方数据AUTO EXTRA : AX55034P

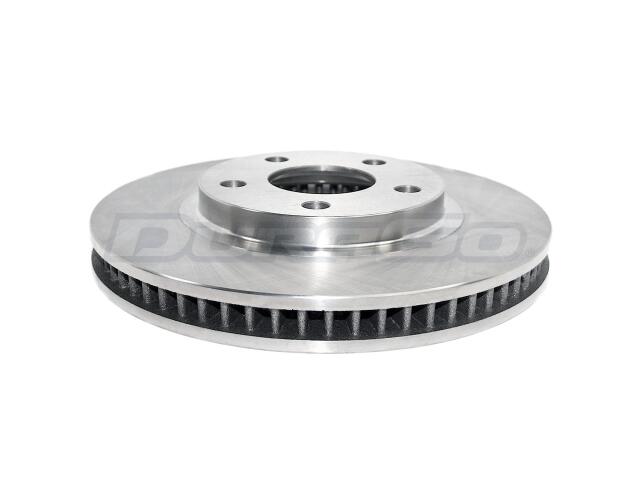

Rotor
AUTO EXTRA : AX55034P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.21
Discard Thickness (MM): 30.7
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.65
Mounting Bolt Hole Circle Diameter (MM): 118
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.27
Nominal Thickness (MM): 32.3
Outside Diameter (IN): 11.91
Outside Diameter (MM): 302.6
Overall Height (IN): 2.04
Overall Height (MM): 51.9
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

BUICK (2)

CADILLAC (1)

CHEVROLET (2)

OE号码

品牌	号码
OE	AX55034P:*
