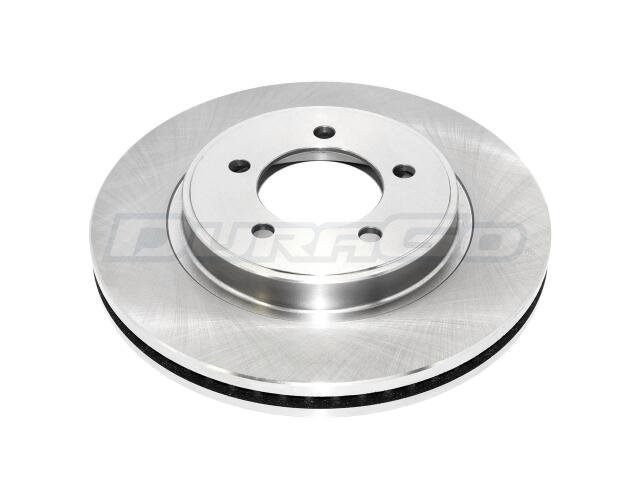

Rotor
AUTO EXTRA : AX54143P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.23
Center Hole Diameter (MM): 82
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.12
Discard Thickness (MM): 28.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.55
Mounting Bolt Hole Diameter (MM): 14
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.01
Outside Diameter (MM): 305
Overall Height (IN): 2.13
Overall Height (MM): 54
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (2)

MERCURY (1)

OE号码

品牌	号码
OE	AX54143P:*
