AUTO EXTRA
AX54141P

第三方数据AUTO EXTRA : AX54141P

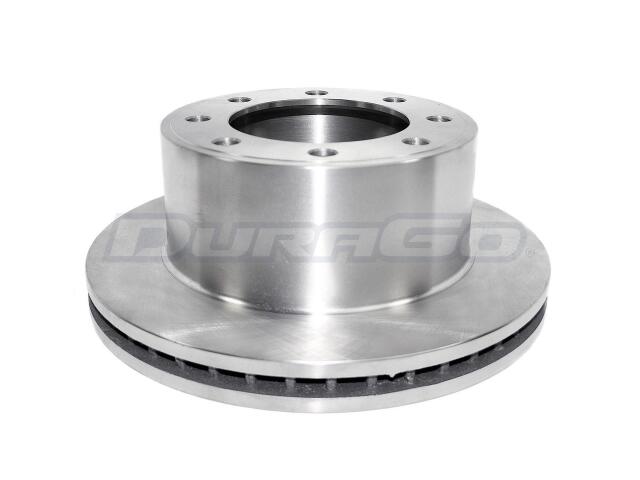

Rotor
AUTO EXTRA : AX54141P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 5
Center Hole Diameter (MM): 127
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.28
Discard Thickness (MM): 32.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.69
Mounting Bolt Hole Circle Diameter (MM): 170
Mounting Bolt Hole Diameter (IN): 0.64
Mounting Bolt Hole Diameter (MM): 16.2
Mounting Bolt Hole Quantity: 8
Nominal Thickness (IN): 1.34
Nominal Thickness (MM): 34
Outside Diameter (IN): 13.39
Outside Diameter (MM): 340
Overall Height (IN): 4.96
Overall Height (MM): 126.1
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (2)

F-250 SUPER DUTY (6)

F-350 SUPER DUTY (6)

5.4L V8 (6)

6.0L V8 DIESEL Turbocharged (3)

6.2L V8 (2)

6.4L V8 DIESEL Turbocharged (3)

6.7L V8 DIESEL Turbocharged (2)

6.8L V10 (6)

OE号码

品牌	号码
OE	AX54141P:*
