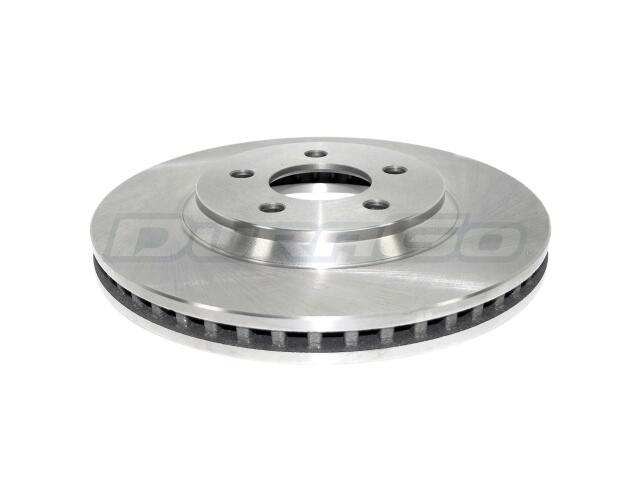

Rotor
AUTO EXTRA : AX54134

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.12
Discard Thickness (MM): 28.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.59
Mounting Bolt Hole Diameter (MM): 15
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.44
Outside Diameter (MM): 316
Overall Height (IN): 1.89
Overall Height (MM): 48.1
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

OE号码

品牌	号码
OE	AX54134:*
