AUTO EXTRA
AX54128P

第三方数据AUTO EXTRA : AX54128P

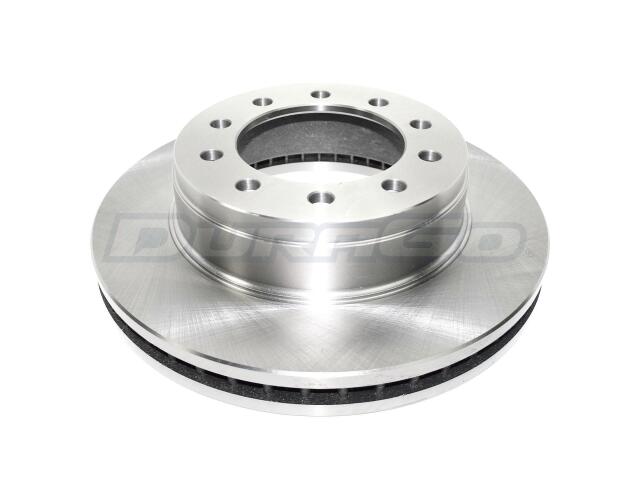

Rotor
AUTO EXTRA : AX54128P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 5.09
Center Hole Diameter (MM): 129.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.47
Discard Thickness (MM): 37.39
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.69
Mounting Bolt Hole Circle Diameter (MM): 170
Mounting Bolt Hole Diameter (IN): 0.64
Mounting Bolt Hole Diameter (MM): 16.2
Mounting Bolt Hole Quantity: 10
Nominal Thickness (IN): 1.54
Nominal Thickness (MM): 39.1
Outside Diameter (IN): 14.53
Outside Diameter (MM): 369
Overall Height (IN): 3.87
Overall Height (MM): 98.4
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (4)

F-450 SUPER DUTY (4)

F-550 SUPER DUTY (4)

F-350 SUPER DUTY (3)

F-250 SUPER DUTY (2)

OE号码

品牌	号码
OE	AX54128P:*
