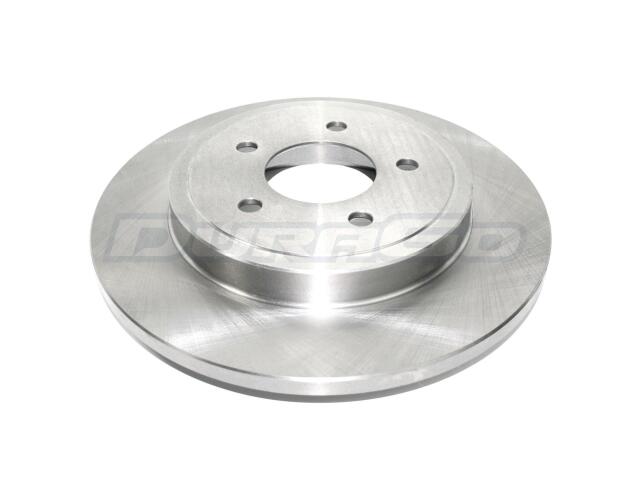

Rotor
AUTO EXTRA : AX54122

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.83
Center Hole Diameter (MM): 72
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.43
Discard Thickness (MM): 11
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.55
Mounting Bolt Hole Diameter (MM): 14
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.88
Outside Diameter (MM): 301.8
Overall Height (IN): 2.2
Overall Height (MM): 55.8
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

FORD (1)

MAZDA (1)

MERCURY (1)

OE号码

品牌	号码
OE	AX54122:*
