AX54111P

第三方数据AUTO EXTRA : AX54111P

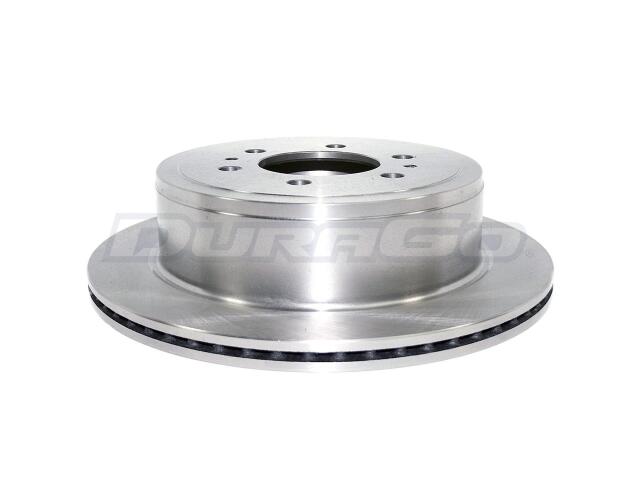

Rotor
AUTO EXTRA : AX54111P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.55
Center Hole Diameter (MM): 90.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.73
Discard Thickness (MM): 18.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.31
Mounting Bolt Hole Circle Diameter (MM): 135
Mounting Bolt Hole Diameter (IN): 0.61
Mounting Bolt Hole Diameter (MM): 15.6
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.79
Nominal Thickness (MM): 20
Outside Diameter (IN): 13.69
Outside Diameter (MM): 347.8
Overall Height (IN): 3.43
Overall Height (MM): 87.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

F-150 (7)

LINCOLN (1)

OE号码

品牌	号码
OE	AX54111P:*
