第三方数据AUTO EXTRA : AX54105P

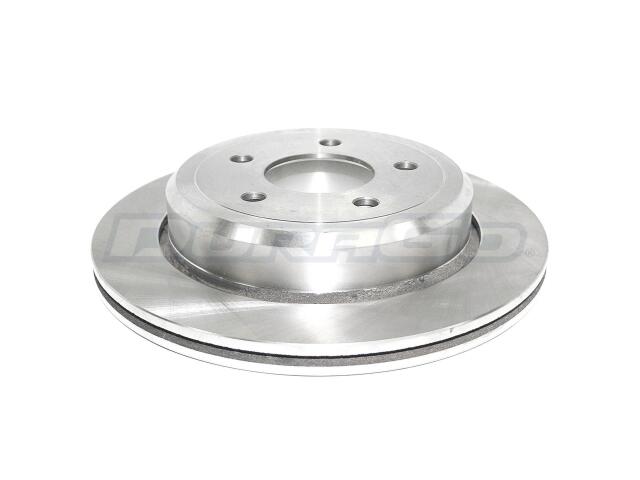

Rotor
AUTO EXTRA : AX54105P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.71
Discard Thickness (MM): 18
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.75
Nominal Thickness (MM): 19
Outside Diameter (IN): 11.61
Outside Diameter (MM): 295
Overall Height (IN): 2.3
Overall Height (MM): 58.3
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

MERCURY (1)

OE号码

品牌	号码
OE	AX54105P:*
