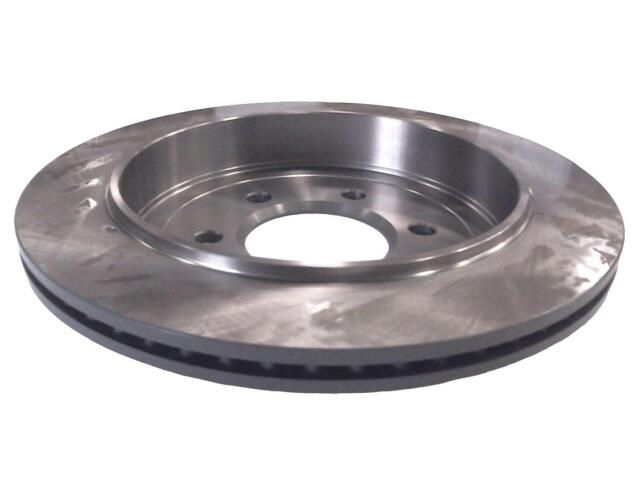

Rotor
AUTO EXTRA : AX54100P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.54
Center Hole Diameter (MM): 90
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.75
Discard Thickness (MM): 19
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.31
Mounting Bolt Hole Circle Diameter (MM): 135
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.5
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22
Outside Diameter (IN): 13.46
Outside Diameter (MM): 342
Overall Height (IN): 2.03
Overall Height (MM): 51.6
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	AX54100P:*
