AX54095

第三方数据AUTO EXTRA : AX54095

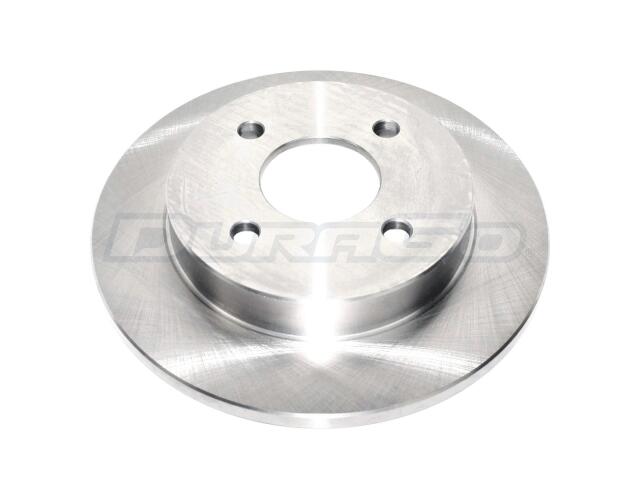

Rotor
AUTO EXTRA : AX54095

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.51
Center Hole Diameter (MM): 63.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.35
Discard Thickness (MM): 8.9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 107.95
Mounting Bolt Hole Diameter (IN): 0.55
Mounting Bolt Hole Diameter (MM): 14
Mounting Bolt Hole Quantity: 4
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 9.96
Outside Diameter (MM): 253
Overall Height (IN): 1.3
Overall Height (MM): 33
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

FORD (1)

OE号码

品牌	号码
OE	AX54095:*
