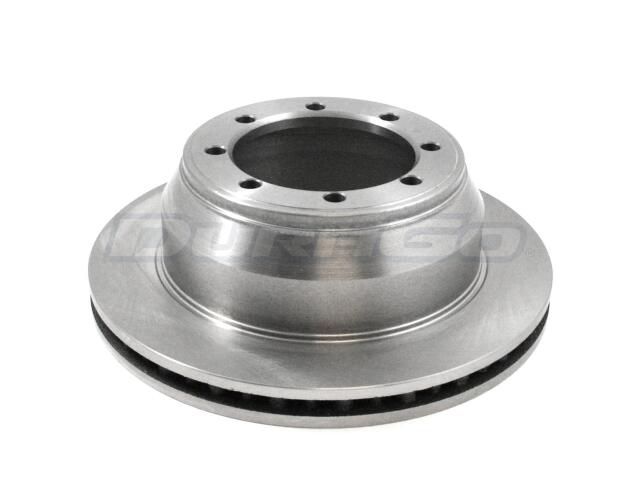

Rotor
AUTO EXTRA : AX54085

Abs Tone Ring Included: No
Center Hole Diameter (IN): 4.86
Center Hole Diameter (MM): 123.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.1
Discard Thickness (MM): 28
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.71
Mounting Bolt Hole Circle Diameter (MM): 145
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.1
Mounting Bolt Hole Quantity: 8
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.83
Outside Diameter (MM): 326
Overall Height (IN): 4.36
Overall Height (MM): 110.7
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

OE号码

品牌	号码
OE	AX54085:*
