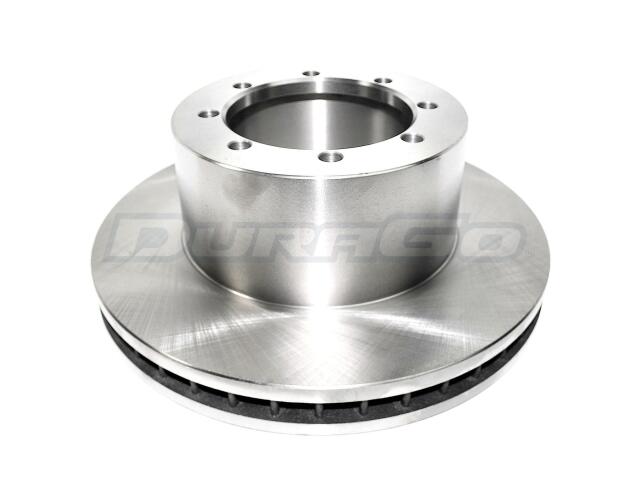

Rotor
AUTO EXTRA : AX54053

Abs Tone Ring Included: No
Center Hole Diameter (IN): 4.85
Center Hole Diameter (MM): 123.3
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.43
Discard Thickness (MM): 36.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.71
Mounting Bolt Hole Circle Diameter (MM): 145
Mounting Bolt Hole Diameter (IN): 0.51
Mounting Bolt Hole Diameter (MM): 13
Mounting Bolt Hole Quantity: 8
Nominal Thickness (IN): 1.5
Nominal Thickness (MM): 38.1
Outside Diameter (IN): 12.9
Outside Diameter (MM): 327.7
Overall Height (IN): 4.87
Overall Height (MM): 123.8
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

OE号码

品牌	号码
OE	AX54053:*
