AUTO EXTRA
AX54033

第三方数据AUTO EXTRA : AX54033

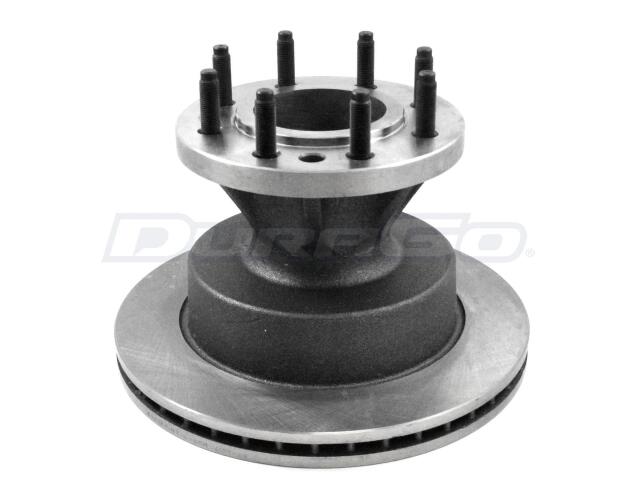

Rotor
AUTO EXTRA : AX54033

Abs Tone Ring Included: Yes
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.1
Discard Thickness (MM): 28
Inner Bearing Cup Included: Yes
Mounting Bolt Hole Circle Diameter (IN): 6.5
Mounting Bolt Hole Circle Diameter (MM): 165.1
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outer Bearing Cup Included: Yes
Overall Height (IN): 7.89
Overall Height (MM): 200.3
Rotor Outside Diameter (IN): 13.02
Rotor Outside Diameter (MM): 330.8
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud Quantity: 8
Stud Thread Size (IN): 9/16-18
Wheel Studs Included: Yes

适用车型

FORD (2)

E-350 (3)

E-450 (3)

OE号码

品牌	号码
OE	AX54033:*
