AUTO EXTRA
AX5383P

第三方数据AUTO EXTRA : AX5383P

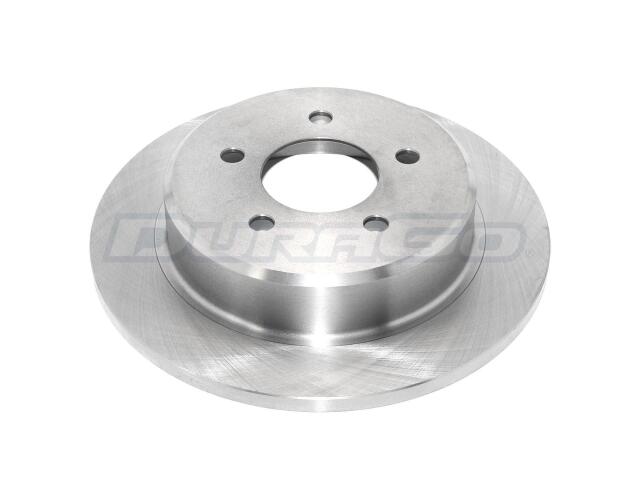

Rotor
AUTO EXTRA : AX5383P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.83
Center Hole Diameter (MM): 72
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.44
Discard Thickness (MM): 11.25
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.5
Nominal Thickness (MM): 12.6
Outside Diameter (IN): 11.42
Outside Diameter (MM): 290
Overall Height (IN): 2.22
Overall Height (MM): 56.3
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

CHRYSLER (1)

DODGE (2)

OE号码

品牌	号码
OE	AX5383P:*
