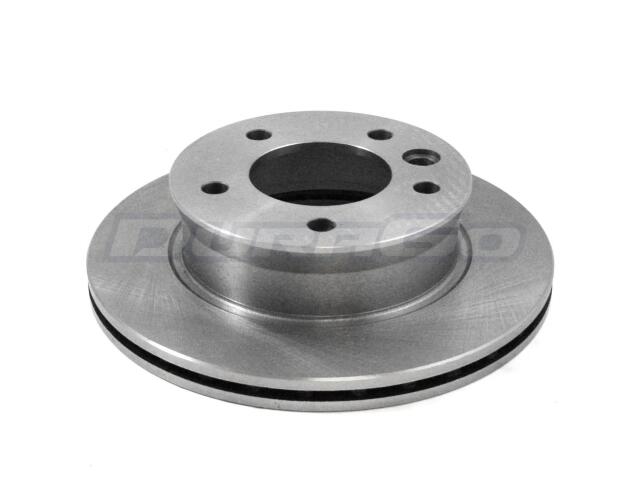

Rotor
AUTO EXTRA : AX53028

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.35
Center Hole Diameter (MM): 85
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.75
Discard Thickness (MM): 19
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.12
Mounting Bolt Hole Circle Diameter (MM): 130
Mounting Bolt Hole Diameter (IN): 0.6
Mounting Bolt Hole Diameter (MM): 15.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22
Outside Diameter (IN): 11.21
Outside Diameter (MM): 284.7
Overall Height (IN): 2.83
Overall Height (MM): 72
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

DODGE (2)

FREIGHTLINER (2)

OE号码

品牌	号码
OE	AX53028:*
