AUTO EXTRA
AX53009

第三方数据AUTO EXTRA : AX53009

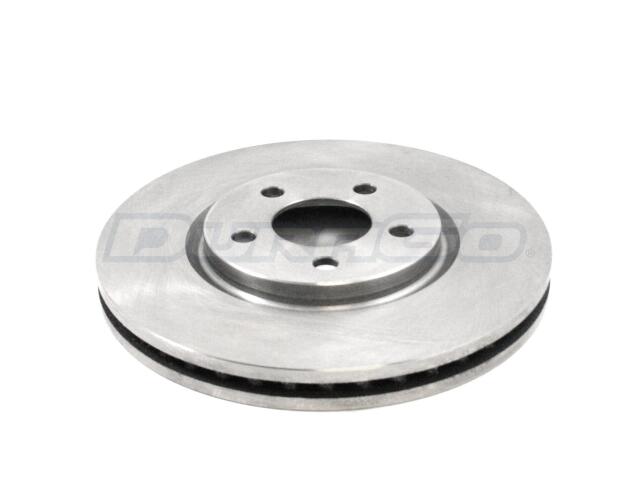

Rotor
AUTO EXTRA : AX53009

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.4
Center Hole Diameter (MM): 61
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.04
Discard Thickness (MM): 26.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.55
Mounting Bolt Hole Diameter (MM): 14
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 11.02
Outside Diameter (MM): 280
Overall Height (IN): 1.56
Overall Height (MM): 39.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHRYSLER (1)

DODGE (1)

OE号码

品牌	号码
OE	AX53009:*
