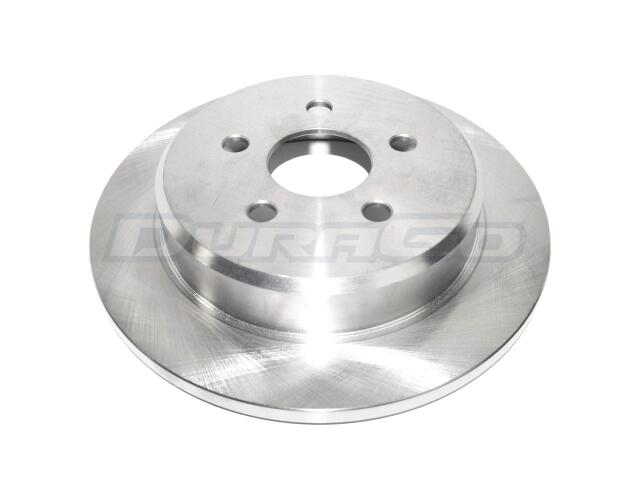

Rotor
AUTO EXTRA : AX53008

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.27
Center Hole Diameter (MM): 57.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.1
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 10.63
Outside Diameter (MM): 270
Overall Height (IN): 2.09
Overall Height (MM): 53.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

CHRYSLER (1)

DODGE (1)

OE号码

品牌	号码
OE	AX53008:*
