AUTO EXTRA
AX53002P

第三方数据AUTO EXTRA : AX53002P

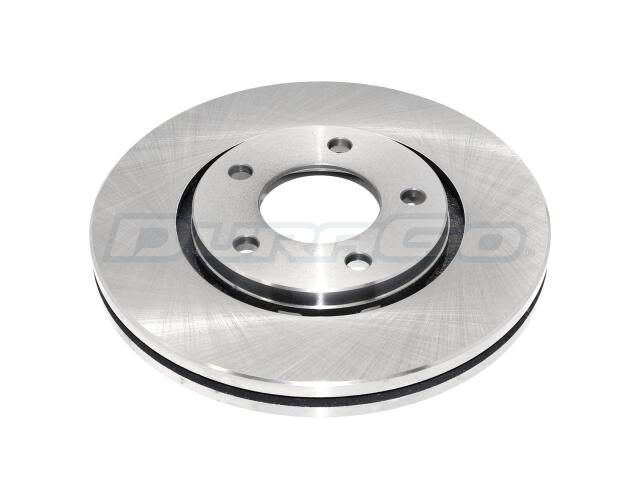

Rotor
AUTO EXTRA : AX53002P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.89
Center Hole Diameter (MM): 73.4
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1
Discard Thickness (MM): 25.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.55
Mounting Bolt Hole Diameter (MM): 14
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 11.06
Outside Diameter (MM): 280.8
Overall Height (IN): 1.5
Overall Height (MM): 38.1
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHRYSLER (1)

DODGE (2)
