AUTO EXTRA
AX34232

第三方数据AUTO EXTRA : AX34232

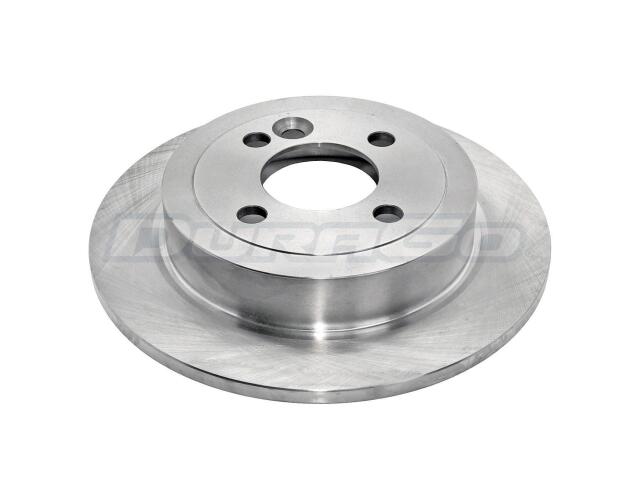

Rotor
AUTO EXTRA : AX34232

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.53
Center Hole Diameter (MM): 64.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 0.59
Mounting Bolt Hole Diameter (MM): 15
Mounting Bolt Hole Quantity: 4
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.19
Outside Diameter (MM): 258.8
Overall Height (IN): 1.73
Overall Height (MM): 44
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

MINI (1)

OE号码

品牌	号码
OE	AX34232:*
