AUTO EXTRA
AX34227

第三方数据AUTO EXTRA : AX34227

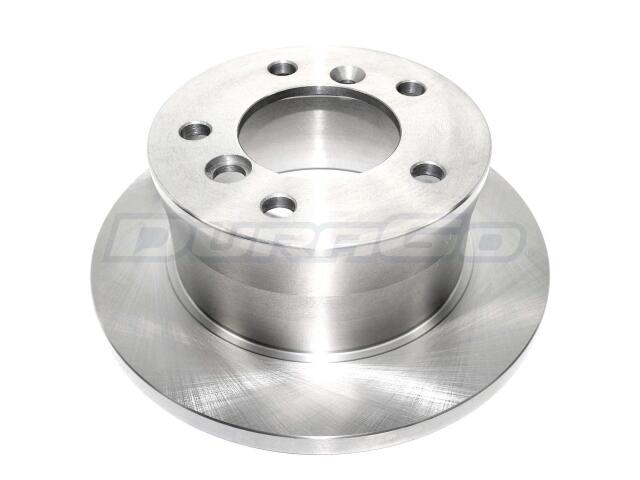

Rotor
AUTO EXTRA : AX34227

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.35
Center Hole Diameter (MM): 85.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.55
Discard Thickness (MM): 14
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.12
Mounting Bolt Hole Circle Diameter (MM): 130
Mounting Bolt Hole Diameter (IN): 0.61
Mounting Bolt Hole Diameter (MM): 15.4
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.63
Nominal Thickness (MM): 15.9
Outside Diameter (IN): 10.69
Outside Diameter (MM): 271.5
Overall Height (IN): 3.8
Overall Height (MM): 96.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

DODGE (2)

FREIGHTLINER (2)

MERCEDES-BENZ (3)

OE号码

品牌	号码
OE	AX34227:*
