AUTO EXTRA
AX31366

第三方数据AUTO EXTRA : AX31366

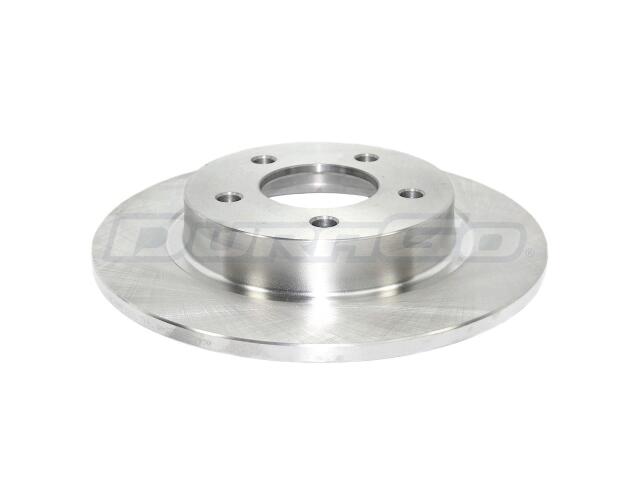

Rotor
AUTO EXTRA : AX31366

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.82
Center Hole Diameter (MM): 71.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.35
Discard Thickness (MM): 9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11
Outside Diameter (IN): 11.02
Outside Diameter (MM): 280
Overall Height (IN): 1.61
Overall Height (MM): 40.9
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	AX31366:*
