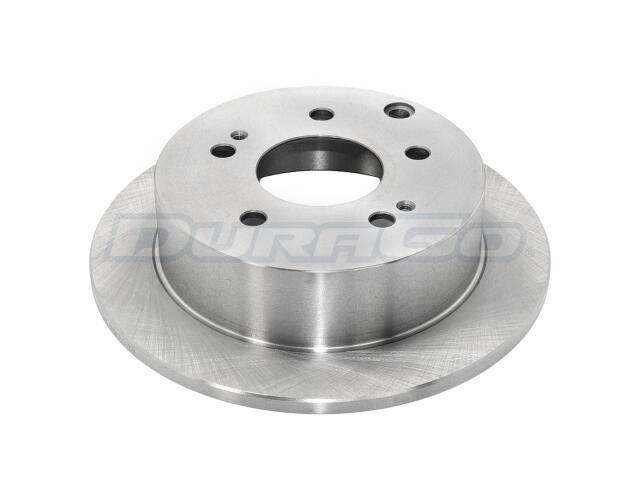

Rotor
AUTO EXTRA : AX31360

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.72
Center Hole Diameter (MM): 69
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.31
Outside Diameter (MM): 262
Overall Height (IN): 2.37
Overall Height (MM): 60.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

MITSUBISHI (2)

OE号码

品牌	号码
OE	AX31360:*
