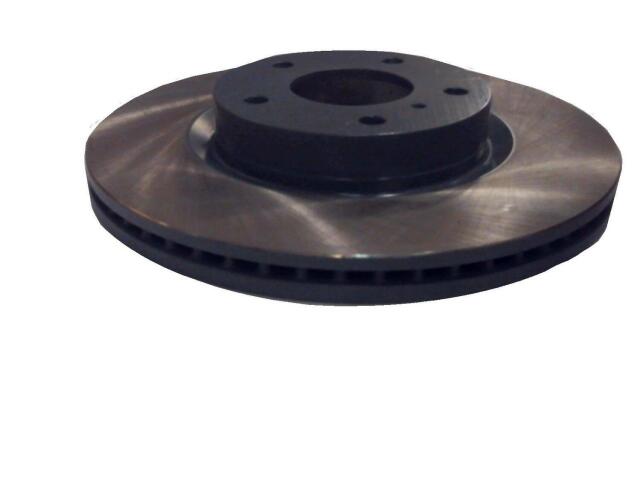

Rotor
AUTO EXTRA : AX31350P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.87
Discard Thickness (MM): 22
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.51
Mounting Bolt Hole Diameter (MM): 13
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.94
Nominal Thickness (MM): 24
Outside Diameter (IN): 11.64
Outside Diameter (MM): 295.7
Overall Height (IN): 1.94
Overall Height (MM): 49.2
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

NISSAN (1)

INFINITI (1)

OE号码

品牌	号码
OE	AX31350P:*
