AUTO EXTRA
AX31336P

第三方数据AUTO EXTRA : AX31336P

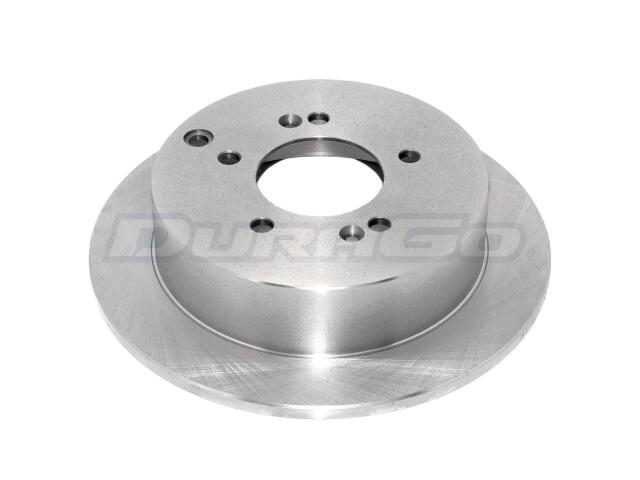

Rotor
AUTO EXTRA : AX31336P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.99
Center Hole Diameter (MM): 76
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 11.18
Outside Diameter (MM): 284
Overall Height (IN): 2.42
Overall Height (MM): 61.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

HYUNDAI (2)

TUCSON (3)

SANTA FE (2)

KIA (1)

SPORTAGE (4)

2.0L L4 (6)

2.0L L4 Turbocharged (6)

2.4L L4 (6)

2.7L V6 (6)

OE号码

品牌	号码
OE	AX31336P:*
