AUTO EXTRA
AX31325P

第三方数据AUTO EXTRA : AX31325P

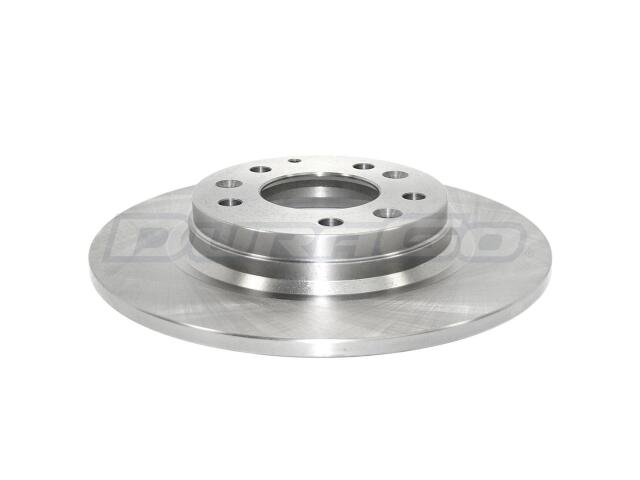

Rotor
AUTO EXTRA : AX31325P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.83
Center Hole Diameter (MM): 72
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.31
Discard Thickness (MM): 8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 11.02
Outside Diameter (MM): 280
Overall Height (IN): 1.59
Overall Height (MM): 40.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

FORD (1)

MAZDA (2)

MX-5 MIATA (1)

6 (5)

LINCOLN (2)

MERCURY (1)
