AX31296P

第三方数据AUTO EXTRA : AX31296P

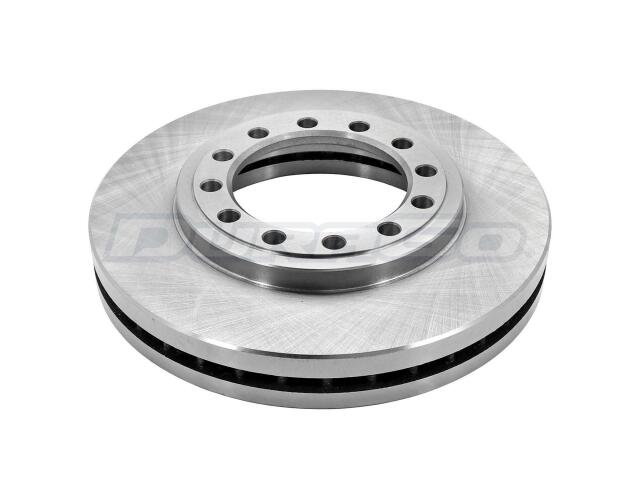

Rotor
AUTO EXTRA : AX31296P

Abs Tone Ring Included: No
Center Hole Diameter (IN): 4.33
Center Hole Diameter (MM): 110.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.46
Discard Thickness (MM): 37
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.35
Mounting Bolt Hole Circle Diameter (MM): 136
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.8
Mounting Bolt Hole Quantity: 12
Nominal Thickness (IN): 1.57
Nominal Thickness (MM): 40
Outside Diameter (IN): 11.54
Outside Diameter (MM): 293
Overall Height (IN): 2.26
Overall Height (MM): 57.4
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

ISUZU (3)

REACH (1)

NPR (2)

NQR (1)

CHEVROLET (2)

GMC (1)
