第三方数据ADVICS : R6R235U

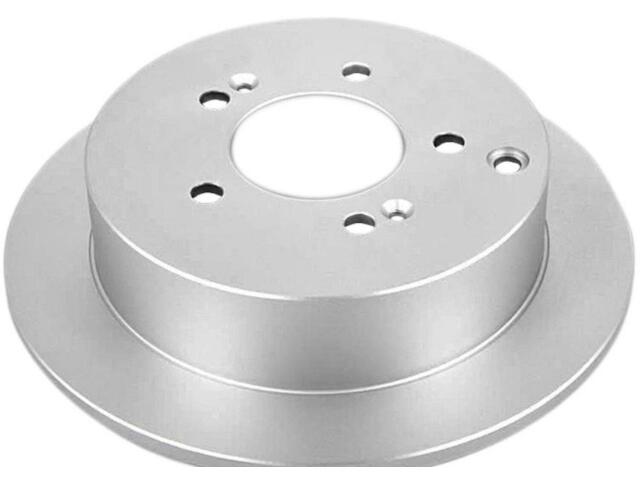

Rotor
ADVICS : R6R235U

Abs Tone Ring Included: No
Discard Thickness (IN): 0.331
Discard Thickness (MM): 8.4
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Nominal Thickness (IN): 0.398
Nominal Thickness (MM): 10.1
Outside Diameter (IN): 11.181
Outside Diameter (MM): 284.0
Overall Height (IN): 2.406
Overall Height (MM): 61.1
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

HYUNDAI (2)

TUCSON (3)

SANTA FE (3)

KIA (1)

SPORTAGE (5)

2.0L L4 (7)

2.0L L4 Turbocharged (6)

2.4L L4 (6)

2.7L V6 (6)

3.3L V6 (1)

OE号码

品牌	号码
OE	584113A30*
