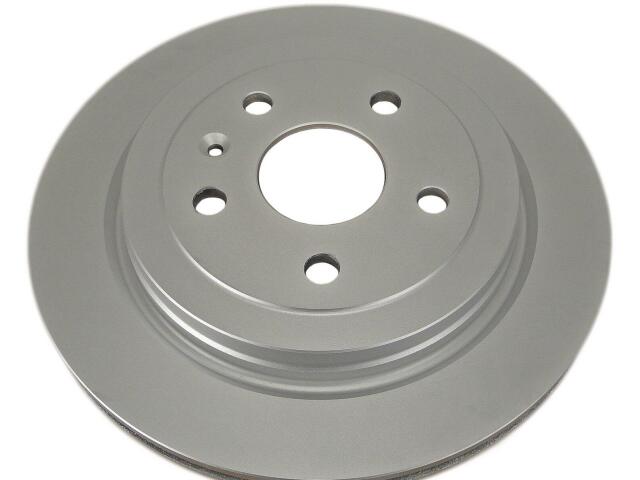

Rotor
ADVICS : L6R195U

Abs Tone Ring Included: No
Discard Thickness (IN): 0.827
Discard Thickness (MM): 21.0
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.0
Nominal Thickness (IN): 0.906
Nominal Thickness (MM): 23.0
Outside Diameter (IN): 12.402
Outside Diameter (MM): 315.0
Overall Height (IN): 1.89
Overall Height (MM): 48.0
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

CADILLAC (1)

CTS (3)

2.0L L4 Turbocharged (6)

3.6L V6 (6)

3.6L V6 Turbocharged (6)

CHEVROLET (1)

OE号码

品牌	号码
OE	1357819*

品牌	号码
OE	2080862*

品牌	号码
OE	2313252*
