第三方数据ADVICS : L6R190U

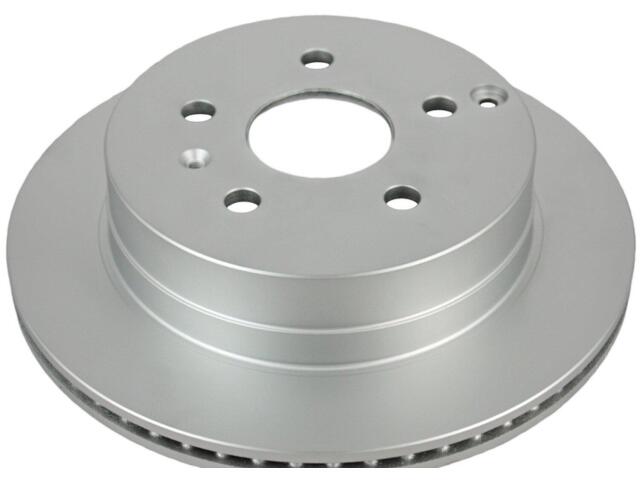

Rotor
ADVICS : L6R190U

Abs Tone Ring Included: No
Discard Thickness (IN): 0.724
Discard Thickness (MM): 18.4
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.0
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20.0
Outside Diameter (IN): 11.925
Outside Diameter (MM): 302.9
Overall Height (IN): 2.823
Overall Height (MM): 71.7
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	2079202*
