ADVICS
L6F358U

第三方数据ADVICS : L6F358U

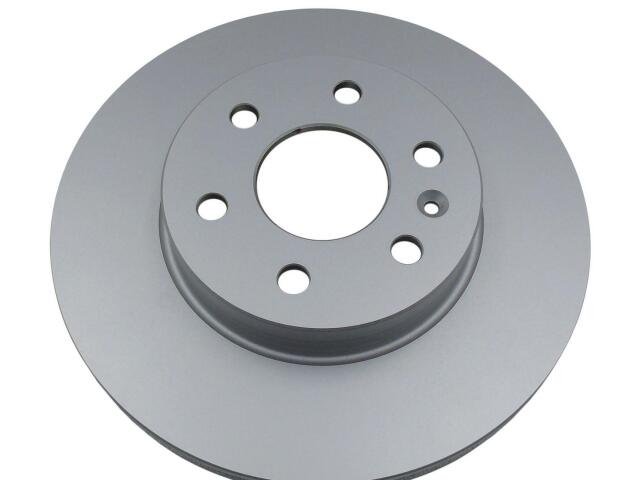

Rotor
ADVICS : L6F358U

Abs Tone Ring Included: No
Discard Thickness (IN): 0.984
Discard Thickness (MM): 25.0
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.0
Nominal Thickness (IN): 1.063
Nominal Thickness (MM): 27.0
Outside Diameter (IN): 12.205
Outside Diameter (MM): 310.0
Overall Height (IN): 2.398
Overall Height (MM): 60.9
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	9477572*
