第三方数据ADVICS : L6F338U

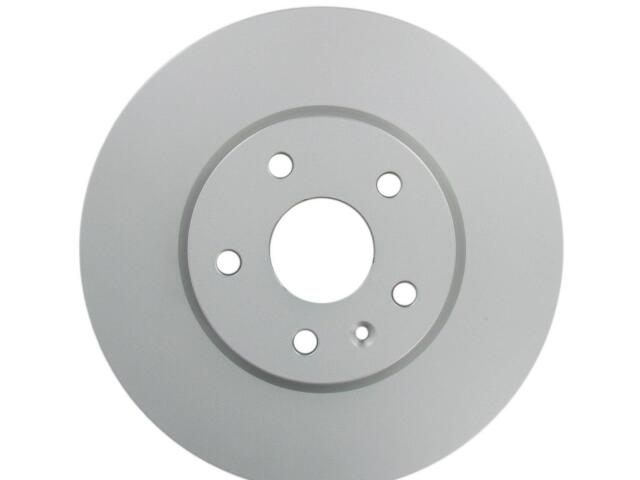

Rotor
ADVICS : L6F338U

Abs Tone Ring Included: No
Discard Thickness (IN): 1.063
Discard Thickness (MM): 27.0
Mounting Bolt Hole Circle Diameter (IN): 4.528
Mounting Bolt Hole Circle Diameter (MM): 115.0
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.0
Outside Diameter (IN): 12.638
Outside Diameter (MM): 321.0
Overall Height (IN): 1.795
Overall Height (MM): 45.6
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

BUICK (1)

CADILLAC (1)

OE号码

品牌	号码
OE	1351234*

品牌	号码
OE	1358582*
