ADVICS
K6R390U

第三方数据ADVICS : K6R390U

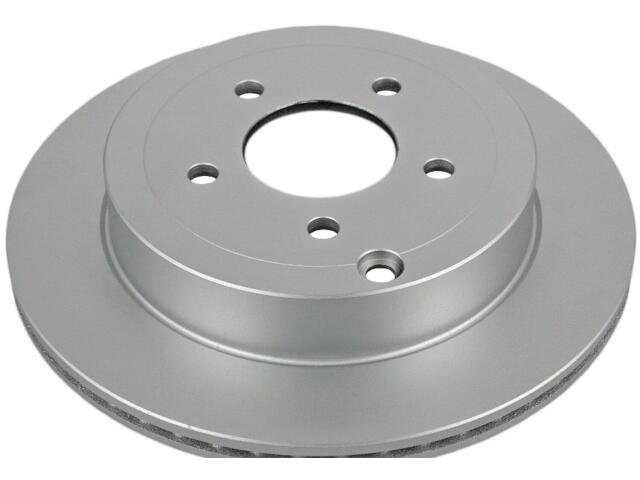

Rotor
ADVICS : K6R390U

Abs Tone Ring Included: No
Discard Thickness (IN): 0.63
Discard Thickness (MM): 16.0
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Nominal Thickness (IN): 0.709
Nominal Thickness (MM): 18.0
Outside Diameter (IN): 11.898
Outside Diameter (MM): 302.2
Overall Height (IN): 2.228
Overall Height (MM): 56.6
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	7T4Z2C026*
