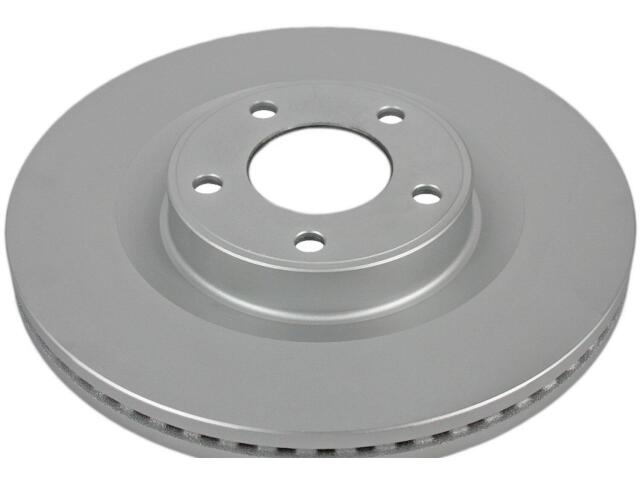

Rotor
ADVICS : K6F146U

Abs Tone Ring Included: No
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.0
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.0
Outside Diameter (IN): 12.598
Outside Diameter (MM): 320.0
Overall Height (IN): 1.902
Overall Height (MM): 48.3
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	7T4Z1125*
