ADVICS
B6R074U

第三方数据ADVICS : B6R074U

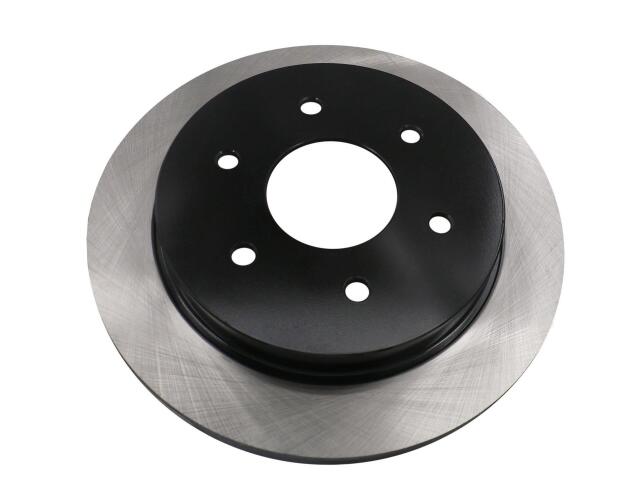

Rotor
ADVICS : B6R074U

Abs Tone Ring Included: No
Discard Thickness (IN): 0.472
Discard Thickness (MM): 12.0
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Nominal Thickness (IN): 0.551
Nominal Thickness (MM): 14.0
Outside Diameter (IN): 12.579
Outside Diameter (MM): 319.5
Overall Height (IN): 2.287
Overall Height (MM): 58.1
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

NISSAN (2)

ARMADA (1)

TITAN (1)

INFINITI (1)

OE号码

品牌	号码
OE	432067S00*
