第三方数据ADVICS : B6F071U

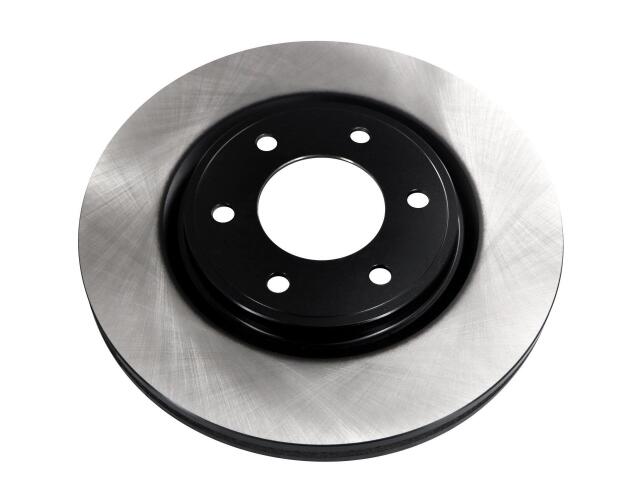

Rotor
ADVICS : B6F071U

Abs Tone Ring Included: No
Discard Thickness (IN): 1.122
Discard Thickness (MM): 28.5
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.0
Outside Diameter (IN): 13.768
Outside Diameter (MM): 349.7
Overall Height (IN): 1.697
Overall Height (MM): 43.1
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

NISSAN (2)

INFINITI (2)

OE号码

品牌	号码
OE	402061LA1*

品牌	号码
OE	402061LA2*
