ADVICS
A6R046

第三方数据ADVICS : A6R046

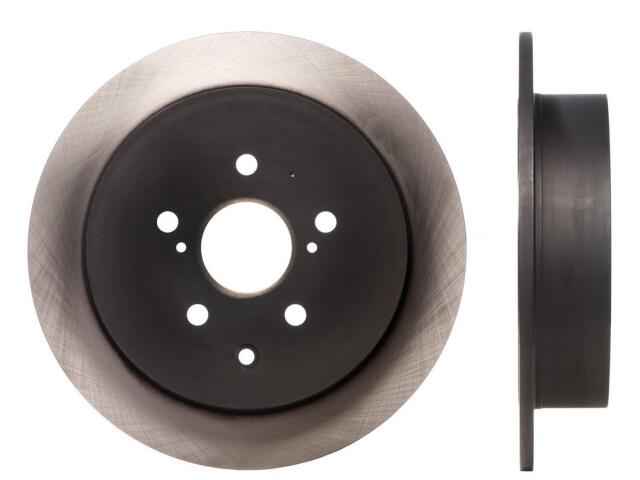

Rotor
ADVICS : A6R046

Center Hole Diameter (MM): 62
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Diameter: 309mm
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Non-Directional
Discard Thickness (MM): 8.5
Grade Type: Premium
Hat Finish: Coated
Inside Diameter (MM): 231
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (MM): 14.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (MM): 10
Outside Diameter (MM): 309
Overall Height (MM): 61.4
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth

适用车型

LEXUS (2)

TOYOTA (2)

HIGHLANDER (3)

SIENNA (2)

OE号码

品牌	号码
OE	424310E02*

品牌	号码
OE	424314807*
