ADVICS
A6R045U

第三方数据ADVICS : A6R045U

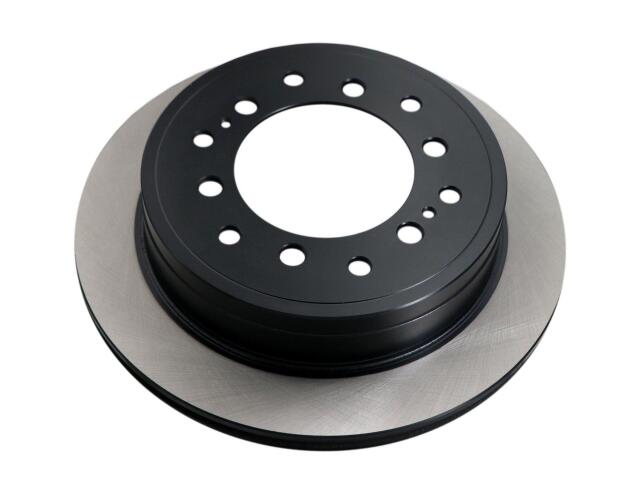

Rotor
ADVICS : A6R045U

Abs Tone Ring Included: No
Discard Thickness (IN): 0.63
Discard Thickness (MM): 16.0
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Nominal Thickness (IN): 0.709
Nominal Thickness (MM): 18.0
Outside Diameter (IN): 12.283
Outside Diameter (MM): 312.0
Overall Height (IN): 2.673
Overall Height (MM): 67.9
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

LEXUS (1)

TOYOTA (2)

4RUNNER (2)

FJ CRUISER (1)

OE号码

品牌	号码
OE	424316031*

品牌	号码
OE	434316031*
