ADVICS
A6F053

第三方数据ADVICS : A6F053

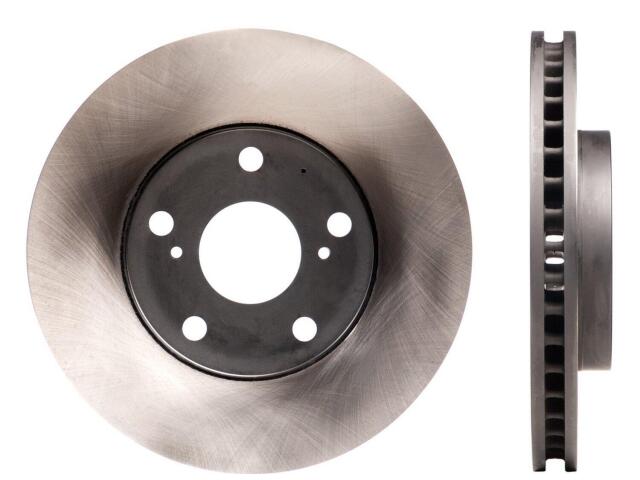

Rotor
ADVICS : A6F053

Center Hole Diameter (MM): 62
Construction: Full Cast
Diameter: 275mm
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Non-Directional
Discard Thickness (MM): 26
Grade Type: Premium
Hat Finish: Coated
Inside Diameter (MM): 159
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (MM): 14.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (MM): 28
Outside Diameter (MM): 275
Overall Height (MM): 49
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	435120604*

品牌	号码
OE	435123309*
