第三方数据ADVICS : A6F048

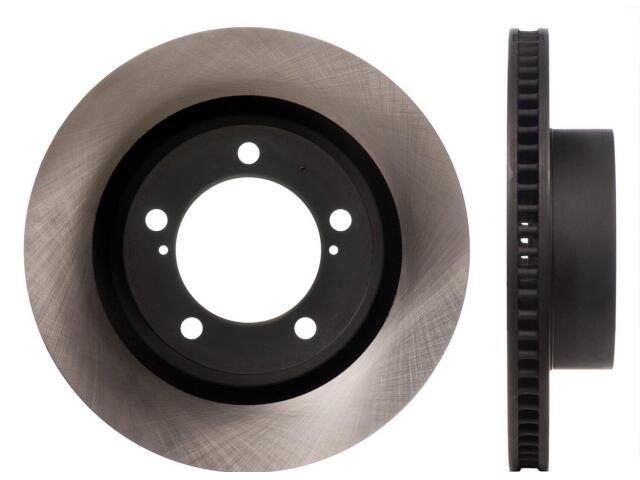

Rotor
ADVICS : A6F048

Center Hole Diameter (MM): 112
Construction: Full Cast
Diameter: 354mm
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Non-Directional
Discard Thickness (MM): 29
Grade Type: Premium
Hat Finish: Coated
Inside Diameter (MM): 247
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (MM): 150
Mounting Bolt Hole Diameter (MM): 14.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (MM): 32
Outside Diameter (MM): 354
Overall Height (MM): 83
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

LEXUS (1)

TOYOTA (3)

TUNDRA (4)

4.0L V6 (8)

4.6L V8 (10)

4.7L V8 (3)

5.7L V8 (15)

SEQUOIA (3)

LAND CRUISER (1)

OE号码

品牌	号码
OE	435120C02*
