ADVICS
A6F039

第三方数据ADVICS : A6F039

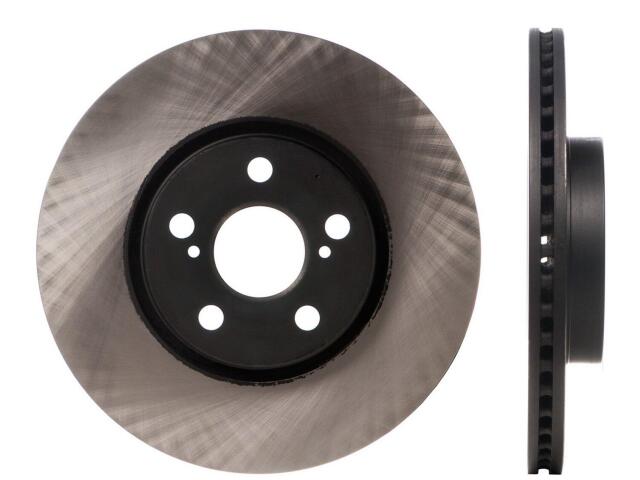

Rotor
ADVICS : A6F039

Center Hole Diameter (MM): 55
Construction: Full Cast
Diameter: 275mm
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Non-Directional
Discard Thickness (MM): 19
Grade Type: Premium
Hat Finish: Coated
Inside Diameter (MM): 150
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (MM): 14.3
Mounting Bolt Hole Quantity: 4
Nominal Thickness (MM): 22
Outside Diameter (MM): 275
Overall Height (MM): 46
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth

适用车型

TOYOTA (2)

COROLLA (2)

MATRIX (1)

PONTIAC (1)

SCION (1)

OE号码

品牌	号码
OE	1918429*

品牌	号码
OE	435120224*

品牌	号码
OE	435121271*
