ADVICS
A6F020U

第三方数据ADVICS : A6F020U

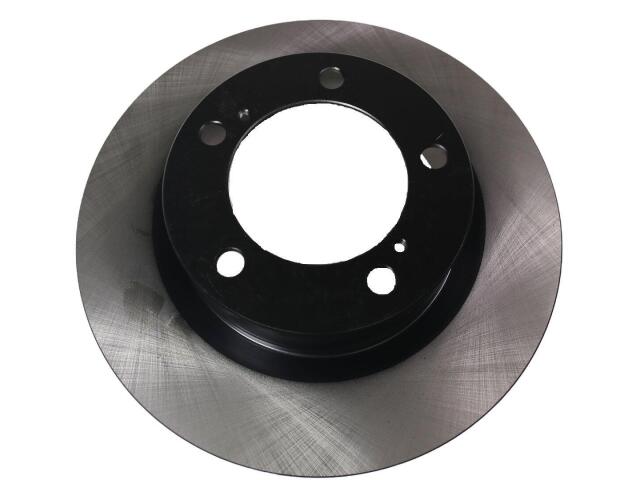

Rotor
ADVICS : A6F020U

Abs Tone Ring Included: No
Discard Thickness (IN): 1.142
Discard Thickness (MM): 29.0
Mounting Bolt Hole Circle Diameter (IN): 5.906
Mounting Bolt Hole Circle Diameter (MM): 150.0
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32.0
Outside Diameter (IN): 13.386
Outside Diameter (MM): 340.0
Overall Height (IN): 3.28
Overall Height (MM): 83.3
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

LEXUS (1)

TOYOTA (1)

OE号码

品牌	号码
OE	435126018*
