第三方数据ADVICS : A6F001U

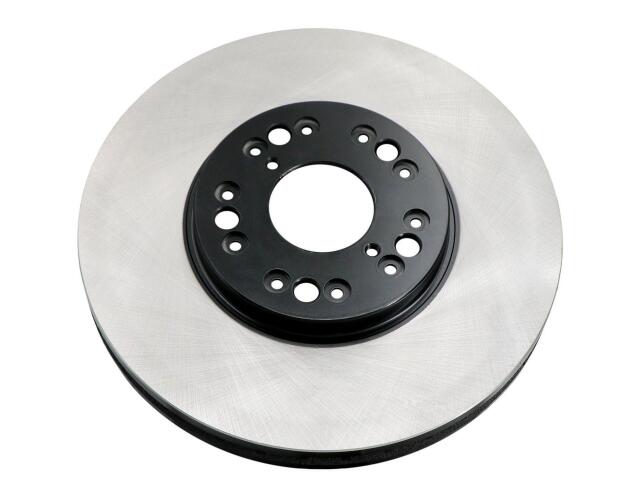

Rotor
ADVICS : A6F001U

Abs Tone Ring Included: No
Brake Surface Finish: Non-Directional
Center Hole Diameter (MM): 62.3
Construction: Full Cast
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.181
Discard Thickness (MM): 30.0
Grade Type: Premium
Hat Finish: Coated
Material: High Carbon
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32.0
Outside Diameter (IN): 11.654
Outside Diameter (MM): 296.0
Overall Height (IN): 1.996
Overall Height (MM): 50.7
Races Included: No
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

LEXUS (1)

OE号码

品牌	号码
OE	435122405*
OE	435123024*

品牌	号码
OE	435125009*

品牌	号码
OE	435125010*
